Product Description

The P25G module is PANGOMICRO Logos series device that Integrated with rich on-chip resources such as RAM, DDR3 and IO interfaces, it has low power consumption, low cost, and rich functions, providing customers with cost-effective solutions.

Applications

Industrial control
communication
consumer goods

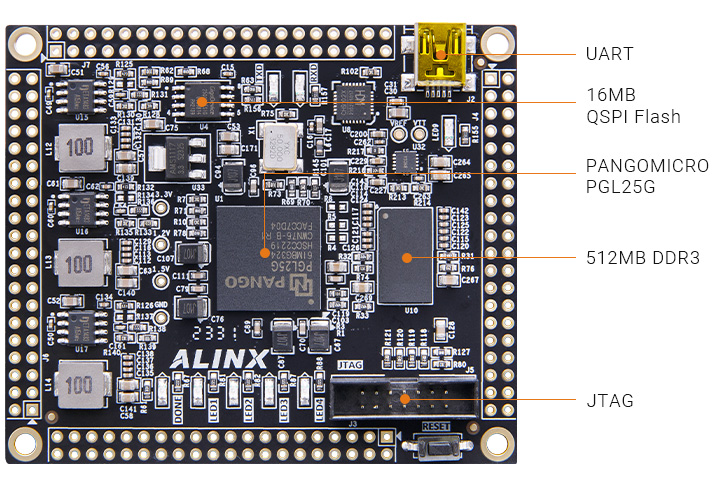

Key Features

• 512 MByte (16-bit) DDR3 SDRAM
• 16 MB QSPI Flash
• User I/Os◆ 136 FPGA I/Os (3.3V)
• Work temperature range of -0°C to +70°C
• 5V single supply
• Dimensions: 75 x 64 mm form factor

Caractéristique technique	Valeur
ID de l’art.	102400
État
ID de l'ancien article
Modèle	P25G
Fabricant	Alinx Electronic Limited
Pays de fabrication	Chine
Contenu	1 pièce
Poids	1000 g
Poids net	1000 g
