Product Description

The P22 module is PANGOMICRO Logos series device that Integrated with rich on-chip resources such as RAM, ADC, DDR3, and IO interfaces, it has low power consumption, low cost, and rich functions, providing customers with cost-effective solutions.

Applications

Industrial control
communication
consumer goods

Key Features

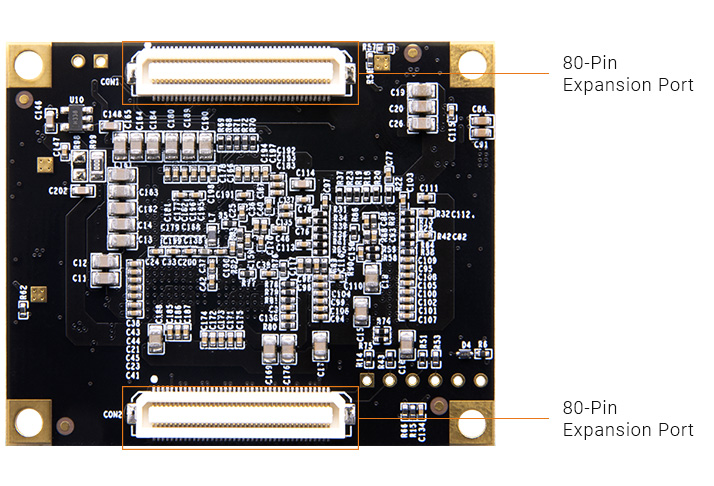

• Pluggable module with 2 x Panasonic board-to-board connectors
• 256 MByte (16-bit) DDR3 SDRAM
• 16 MB QSPI Flash
• User I/Os
◆ 114 FPGA I/Os (3.3V)
• Work temperature range of -0°C to +70°C
• 5V single supply
• Dimensions: 55 x 45 mm form factor

Caractéristique technique	Valeur
ID de l’art.	102401
État
ID de l'ancien article
Modèle	P22
Fabricant	Alinx Electronic Limited
Pays de fabrication	Chine
Contenu	1 pièce
Poids	1000 g
Poids net	1000 g

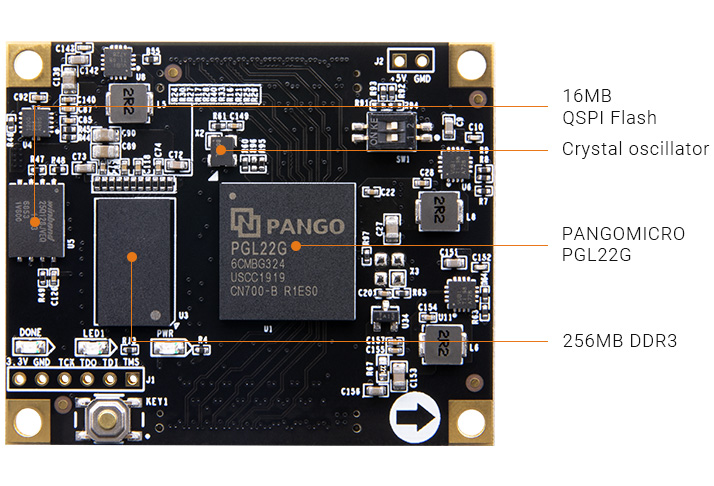

Module Features

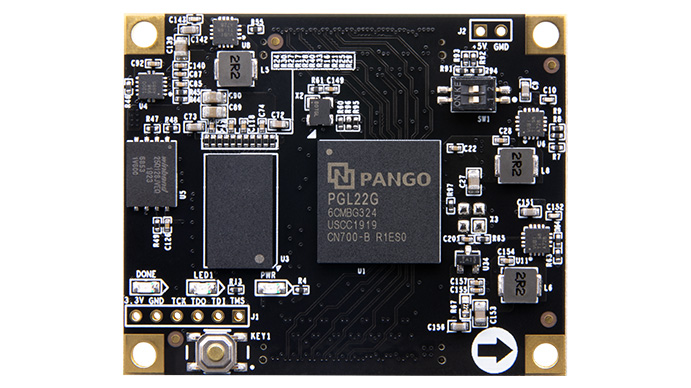

Featuring the PANGOMICRO Logos PGL22G -6CMBG324

* If you want to design a base board based on this Logos system-on-module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Logos development boards that uses this Logos module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.
