Product Description

The AXP100B FPGA Development Boar is PANGO Logos2 series device, delivers standout performance with DDR3 SDRAM, QSPI Flash, PCIe, SFP+, HDMI, Gigabit Ethernet.

Provide high-speed communication (PCIe, SFP+) and video applications (HDMI).

Applications

● Communication
● Image and video processing
● Data analysis
● Network information security
● Instrumentation

Key Features

System-on-Module
● PANGO Logos-2 PG2L100H:◆ 28 nm FPGA fabric
◆ HSST 6.6 Gbps Transceivers
● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM
● 2 x 16 MB QSPI Flash

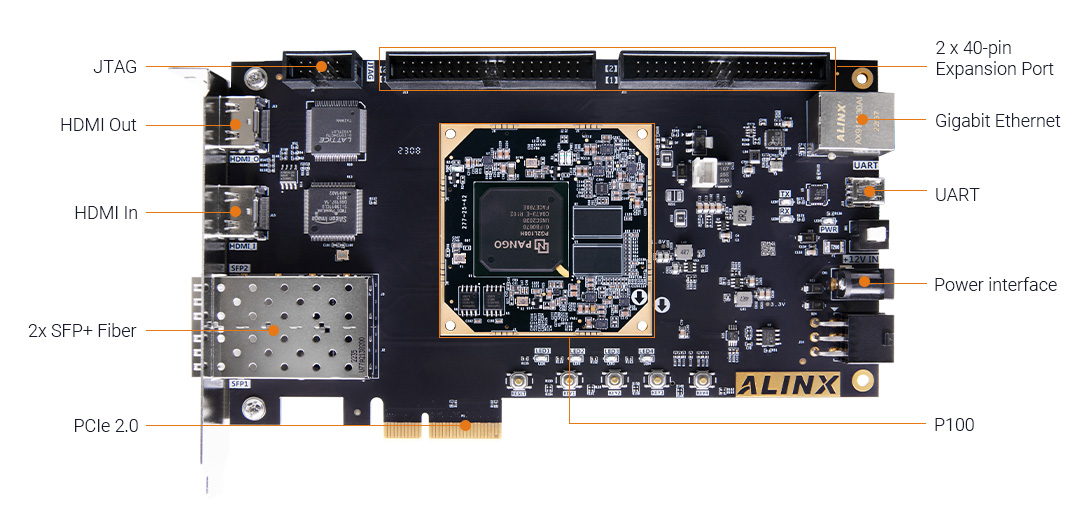

Base Board
● 1 x PCIe® Gen2 ×4
● 1 x Gigabit Ethernet
● 1 x UART (USB to UART)
● 1 x Micro SD
● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75A
● 2 x SFP+ (per line 6.6Gbps)
● 2 x HDMI (1 x HDMI in + 1 x HDMI out)
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) + KEY (1 x reset + 4 x KEY)
● 12V single supply
● Dimensions: 188 x 106 mm form factor

Caractéristique technique	Valeur
ID de l’art.	102392
État
Modèle	AXP100B V2.0
Fabricant	Alinx Electronic Limited
Pays de fabrication	Chine
Contenu	1 pièce
Poids	1000 g
Poids net	1000 g

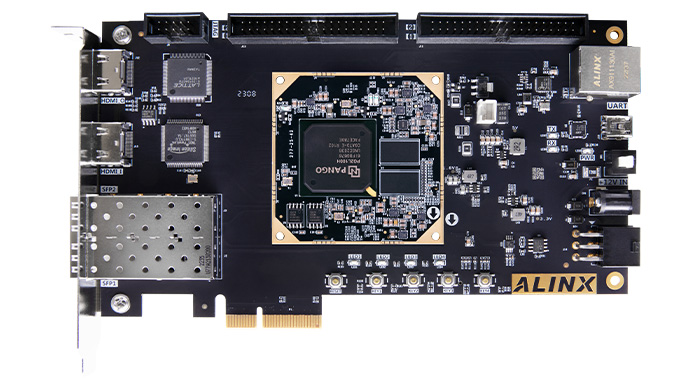

Development Board Features

Featuring the PANGO Logos2 PG2L100H-6IFBG676 Adaptive

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGO Logos2 based application.

* The AXP100B development board consists of a P100 SoM and base board. If you want to purchase P100 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX PANGO Logos PG2L100H development board and Some accessories

System-on-Module	1	Base Board	1
Mini USB Cable	1	USB Downloader Cable / set	1
12V Power Adapter	1	PCIe Fence	1
