SoM with AMD Zynq 7045-3E incl. Heat Spreader (TE0745-03-93E31-AK)
TE0745-03-93E31-A module including pre-assembled heat spreader, Gre: 5.2 x 7.6 cm
Item number VAR-827003687
Manufacturer Product Number: TE0745-03-93E31-AK
Taric/custom code: 84718000
Item located in and dispatched from: Riedlingen, Germany
Please ask for any minimum quantities.
The predecessor of this article is TE0745-02-93E31-AK. All changes are in the Product Change Notification (PCN).
The Trenz Electronic TE0745-03-93E31-AK are industrial-grade SoC modules integrating a AMD Zynq 7045, 1 GByte DDR3L SDRAM,64 MByte QSPI Flash memory for con?guration and operation and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking strips.

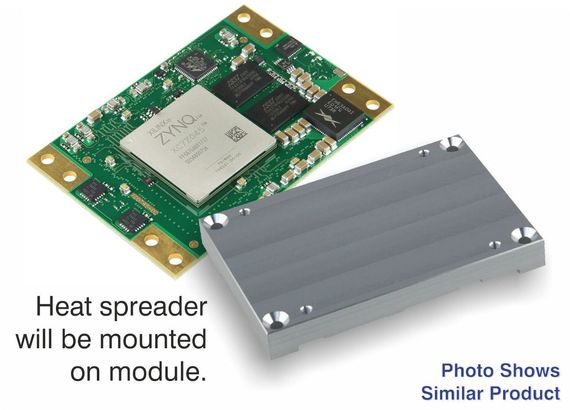

This module is identical with TE0745-03-93E31-Aexcept the mounted heat spreader.
All this on a tiny footprint of 5.2 x 7.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.
All parts are at least industrial temperature range of -40C to +85C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.
Key Features
- AMD Zynq 7045 SoC XC7Z045-3FFG676E
- Rugged for high shock and vibration
- Size 5.2 x 7.6 cm
- Dual ARM Cortex-A9 MPCore
- 1 GByte 32-Bit wide DDR3L
- 64 MByte QSPI Flash memory
- 1 GBit Ethernet PHY
- USB 2.0 OTG PHY
- Plug-on module with 3x 160-pin High-Speed Samtec ST5 connectors
- 250 FPGA I/O's and17 MIO available on board-to-board connectors
- 8 x GTX (7030: 4 x GT)
- 2 GT Reference Clock inputs (7030: 1 REFCLK)
- 2 x PLL outputs
- Reference clock input for PLL (optional)
- I2C
- MAC Address EEPROM
- RTC
- Evenly-spread supply pins for good signal integrity
Other assembly options for cost or performance optimization plus high volume prices available on request.
Recommended Software
Vivado Enterprise Edition (paid version)
The Vivado Enterprise Edition is the full-featured version of the design suite and supports all AMD devices.
Development Support
There is a base board available for this module.
Latest documentation, design support files and reference designs with source files are available for download free of charge.
Scope of Delivery
- 1 x TE0745-03-93E31-A Trenz Electronic SoM with AMD Zynq 7045
- 1 x mounted heat spreader
Additional Information
- Manufacturer'sarticle number: TE0745-03-93E31-AK
- Trenz Electronic TE0745 Wiki
- Trenz Electronic KK0745 Wiki
- Support Forum
All modules produced by Trenz Electronicare developed and manufactured in Germany.
