SoC Module with AMD Zynq 7020-1Q, 512 MByte DDR3L, 6 x 6 cm (TE0728-04-1Q)
AMD Zynq XA7Z020-1CLG484Q, 512 MByte DDR3L SDRAM, 16 MByte SPI Flash, 2 x 100 MBit Ethernet, size: 6 x 6 cm
Item number VAR-827003663
Manufacturer Product Number: TE0728-04-1Q
Taric/custom code: 84718000
Item located in and dispatched from: Riedlingen, Germany
Please ask for any minimum quantities.
The predecessor of this article is TE0728-03-1Q. All changes are in the Product Change Notification (PCN).

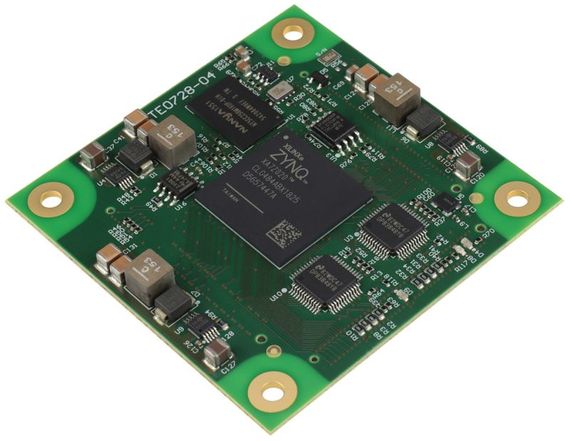

The Trenz Electronic TE0728-04-1Q is a SoC module integrating a AMD Automotive Zynq 7020, 512 MByte DDR3L SDRAM with 16-Bit width, 16 MByte Flash Memory for configuration and operation, two 100 Megabit Ethernet transceivers, and powerful switch-mode power supplies for all on-board voltages. A large number of con?gurable I/O's is provided via rugged high-speed stacking strips.
Within the complete module only Automotive components are installed.
All this in a compact 6 x 6 cm form factor, at the most competitive price.
Key Features
- AMD XA7Z020-1CLG484Q (Automotive)
- Rugged for shock and high vibration
- Dimensions: 6 x 6 cm
- Temperature range: automotive
- 2 x ARM Cortex-A9 MPCore
- 2 x 100 MBit Ethernet transceiver (PHY)
- 512 MByte DDR3L SDRAM, 16-bit-wide
- 16 MByte QSPI Flash memory (with XiP support)
- Plug-on module with 3 x 80-pin Samtec Micro Tiger Eye(TM) high-speed connectors
- 76 single ended I/O, 24 LVDS pairs (48 I/O) and 42 MIO available on board-to-board connectors
- CAN transceiver (PHY)
- 12?V power supply with watchdog
- On-board high-efficiency DC-DC converters
- System management and power sequencing
- eFUSE bit-stream encryption
- AES bit-stream encryption
- Temperature compensated RTC (real-time clock)
- 3 user LEDs
- Evenly-spread supply pins for good signal integrity
Other assembly options for cost or performance optimization plus high volume prices available on request.
Recommended Software
Vivado Standard Edition (free version)
The Vivado StandardEdition is the FREE version of the Vivado design suite.VivadoStandard delivers instant access to some basic Vivado features and functionality at no cost.
Overview Vivado Standard and Enterprise EditionDevelopment Support
There is a base board available for this module.
Latest documentation, design support files and reference designs with source files are available for download free of charge.
Scope of Delivery
- 1 x TE0728-04-1Q Trenz ElectronicSoC module with Automotive AMD Zynq 7020
Additional Information
- Manufacturer's article number: TE0728-04-1Q
- Trenz Electronic TE0728 Wiki
- Support Forum
All modules produced by Trenz Electronicare developed and manufactured in Germany.
The online pictures of this product are not a legally binding offer, but are symbol pictures for illustration and presentation only.
