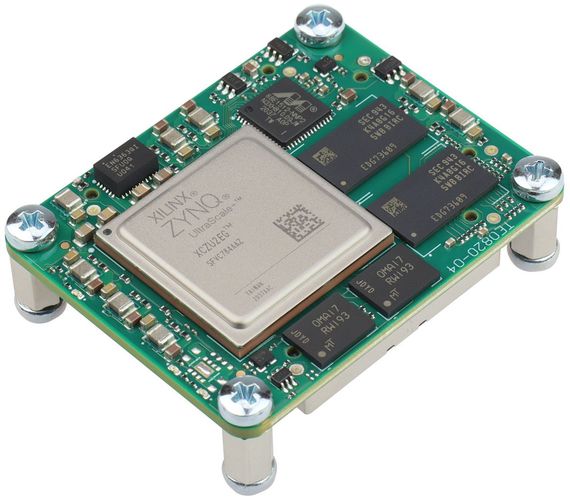

MPSoC Module with AMD Zynq UltraScale+ ZU2EG-1E, 2 GByte DDR4 SDRAM, 4 x 5 cm (TE0820-04-2BE21MA)
AMD Zynq UltraScale+ XCZU2EG-1SFVC784E, 2 GByte DDR4, 128 MByte QSPI Boot Flash, 8 GByte eMMC, size: 4 x 5 cm
Item number VAR-827003556
Manufacturer Product Number: TE0820-04-2BE21MA
Taric/custom code: 84718000
Item located in and dispatched from: Riedlingen, Germany
This product is offered at a discount because there is already a successor.
Only valid while stocks last!
The predecessor of this article is TE0820-04-2BE21FA. All changes are in the Product Change Notification (PCN).
The successor of this article is TE0820-05-2BE21MA. All changes are in the Product Change Notification (PCN).
The Trenz Electronic TE0820-04-2BE21MA is an industrial-grade MPSoC module integrating a AMD Zynq UltraScale+ ZU2EG,2 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.
All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.
All parts are at least extended temperature range of 0C to +85C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.
Key Features
- AMD Zynq UltraScale+ XCZU2EG-1SFVC784E
- ZU2EG, 784 Pin Packages
- Dual Cortex-R5 32-bit ARM v7 real-time processing unit (RPU)
- Four high-speed serial I/O (HSSIO)
- 132 x HP PL I/Os (3 banks)
- 14 x PS MIOs (6 of the MIOs intended for SD card interface in default configuration)
- 4 x serial PS GTR transceivers
- Rugged for shock and high vibration
- Graphic Processing Unit (GPU)
- Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
- 2 GByte DDR4 SDRAM, 32-Bit databus-width
- 128 MByte QSPI boot Flash in dual parallel mode
- 8GByte eMMC Memory(up to 64 GByte)
- Programmable quad PLL clock generator PLL for PS GTR clocks (optional external reference)
- Gigabit Ethernet transceiver PHY
- MAC address serial EEPROM
- Hi-speed USB2 ULPI transceiver with full OTG support
- Real Time Clock
- All power supplies on board
- Evenly spread supply pins for good signal integrity
- 4 x 5 cmform factor
Other assembly options for cost or performance optimization plus high volume prices available on request.
Recommended Software
Vivado Standard Edition (free version)
The Vivado StandardEdition is the FREE version of the Vivado design suite.VivadoStandard delivers instant access to some basic Vivado features and functionality at no cost.
Overview Vivado Standard and Enterprise EditionDevelopment Support
There are different base boards available for this module.
Latest documentation, design support files and reference designs with source files are available for download free of charge.
Scope of Delivery
- 1 x TE0820-04-2BE21MA Trenz Electronic MPSoC module with AMD Zynq UltraScale+ ZU2EG
- 8 x screws
- 4 x bolts
Additional Information
- Manufacturer's article number: TE0820-04-2BE21MA
- Trenz Electronic TE0820 Wiki
- Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, regular 4 mm,
overview, compatibility, mating heights and speed rating: Wiki, mounted on every 4 x 5 cm module of Trenz Electronic - Support Forum
All modules produced by Trenz Electronicare developed and manufactured in Germany.
| Technical characteristic | Value |
|---|---|
| Item ID | 103070 |
| Condition | New |
| Legacy item ID | 01967b9f1be0735c9b36c9e3471fc844 |
| Model | TE0820-04-2BE21MA |
| Manufacturer | |
| Manufacturing country | Germany |
| Content | 1 piece |
| Weight | 99 g |
| Customs tariff number | 84718000 |
