MPSoC Modul wit Zynq UltraScale+ ZU17EG-2I, 4 GB DDR4 ECC (PS), 4 GB DDR4 (PL) (TE0865-02-DGI83MA)
AMD Zynq UltraScale+ XCZU17EG-2FFVC1760I, 4 GByte DDR4 SDRAM+ECC(PS), 4 GByte DDR4 SDRAM (PL), 256 MByte QSPI Boot Flash, size: 7.5 x 10 cm
Item number VAR-827003546
Manufacturer Product Number: TE0865-02-DGI83MA
Taric/custom code: 84718000
Item located in and dispatched from: Riedlingen, Germany
Please ask for any minimum quantities.

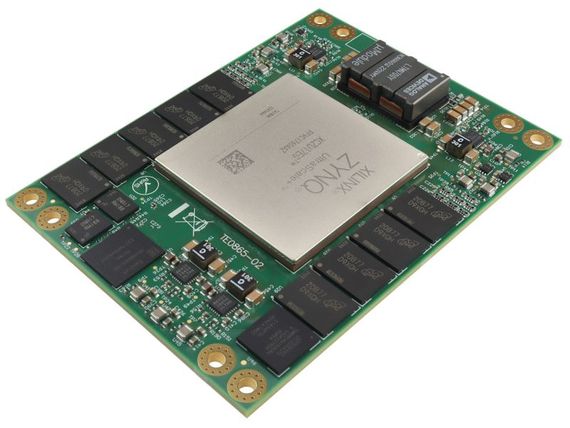

The Trenz Electronic TE0865-02-DGI83MA is a high-performance MPSoC module integrating a AMD/Xilinx Zynq UltraScale+ ZU17EG,4 GByte DDR4 SDRAM with ECC on PS,4 GByte DDR4 SDRAM on PL,256 MByte Flash memory for configuration and operation,Gigabit Ethernet PHY, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.
All parts are at least industrial temperature range of -40C to +85C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.
Key Features
- SoC / FPGA
- Device: AMD Zynq UltraScale+ XCZU17EG-2FFVC1760I
- Speedgrade: -2
- Temperature range:Industrial
- Package: C1760
- Graphics Processing Unit (GPU)
- RAM / Storage
- 4GByte DDR4 SDRAM with ECC on PS
- 4GByte DDR4 SDRAMon PL
- 2 x128MByte SPI Boot Flash (dual parallel)
- 8GByte e.MMC memory
- 2 Kbit MAC-Adress serial EEPROMwith EUI-48 Node Identity
- On Board
- AlteraMax 10 FPGA as CPLD
- 6 x MEMS Oscillator
- Gigabit Ethernet Transceiver PHY
- Hi-speed USB2 ULPI Transceiver with full OTG support
- Interface
- 96 HD I/Os
- 240 HP I/Os
- 21 MIOs
- 32 x PL GTH
- 16 x PL GTY
- 4 x PS GTR
- 4x Samtec Accelerate HD B2B connector
- Power
- 12V input supply voltage
- Variable Bank IO Power Input
- Dimension
- 7.5 x 10cm
- 7.5 x 10cm
Other assembly options for cost or performance optimization plus high volume prices available on request.
Recommended Software
Vivado Enterprise Edition (paid version)
The Vivado Enterprise Edition is the full-featured version of the design suite and supports all AMD devices.
Development Support
Latest documentation, design support files and reference designs with source files are available for download free of charge.
Scope of Delivery
- 1 x TE0865-02-DGI83MA Trenz Electronic MPSoC module with AMD Zynq UltraScale+ ZU17EG
Additional Information
- Manufacturer's article number: TE0865-02-DGI83MA
- Trenz Electronic TE0865 Wiki
- Support Forum
All modules produced by Trenz Electronicare developed and manufactured in Germany.
| Technical characteristic | Value |
|---|---|
| Item ID | 103060 |
| Condition | New |
| Legacy item ID | 01967b9f4f817001b5087209b1778c65 |
| Model | TE0865-02-DGI83MA |
| Manufacturer | |
| Manufacturing country | Germany |
| Content | 1 piece |
| Weight | 158 g |
| Customs tariff number | 84718000 |
