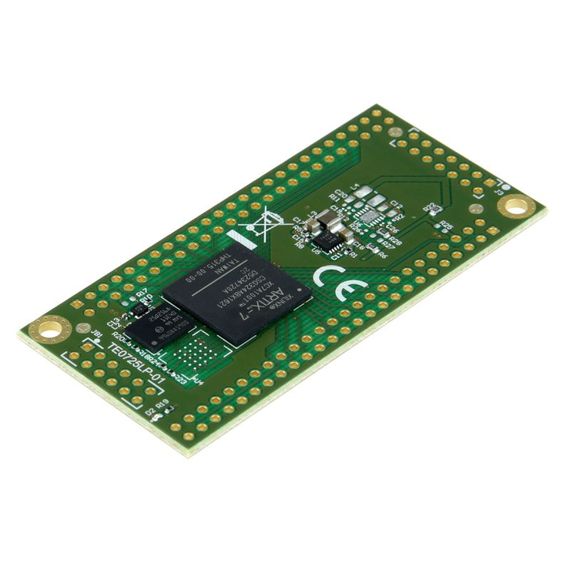

FPGA Module with AMD Artix 7A100T-2C, 2 x 50 Pin-Header, 3.3V supply (TE0725LP-01-72C-1)
AMD Artix 7 XC7A100T-2CSG324C, 64 MByte Flash, optional HyperRAM or -Flash, 3,3V single supply, size: 7.3 x 3.5 cm
Item number VAR-827003451
Manufacturer Product Number: TE0725LP-01-72C-1
Taric/custom code: 84718000
Item located in and dispatched from: Riedlingen, Germany
The predecessor of this article is TE0725LP-01-100-2C. All changes are in the Product Change Notification (PCN).
The Trenz Electronic TE0725LP-01-72C-1 is a low cost small-sized FPGA module integrating a AMD Artix 7 (15T-100T) and64 MByte Flash memory for configuration and operation. The 2 x 50 pin headers with a 2.54 mm standard pitch are perfect for breadboard or low cost dual layer PCB.
The reference design is bundled with a FREE evaluation edition of the low-cost, commercially proven, high performance memory controller IP supplied by Synaptic Laboratories Ltd (SLL).This free IP evaluation license never expires, and no customer registration or NIC ID is required.
Click here to find the latest free trials of SLLs memory controller IP for HyperBus, OctaBus, Xccela Bus, JEDEC xSPI Profile 1.0 and JEDEC xSPI Profile 2.0 for Intel, Microchip, and AMD/Xilinx FPGA.SLL IP is also qualified for use with Trenz ElectronicHS CRUVI enabled boards.Please send all sales enquiry and technical support questions for SLLs IP to info@synaptic-labs.com.
All parts are at least commercial temperature range of 0C to +70C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.
Key Features
- AMD Artix 7 XC7A100T-2CSG324C
- Commercial temperature grade (industrial on request)
- 64MByte Flash memory
- 2 x 50 pin headers with 2.54 mm pitch, ideal for breadboard use
- 3.3?V single supply with on board voltage regulators
- 95 I/O's (42 + 42 + 3 + 8)
- 25 MHz system clock (100 MHz can be customized on request)
- I2C EEPROM
- 7.3 x 3.5 cm form factor
- JTAG/UART connector
- One user LED
- Optional HyperRAM (8 to 32 MByte) or HyperFlash
HyperRAM from Cypress cypress.com/products/hyperram-memory
HyperFlash from Cypress cypress.com/products/hyperflash-nor-flash-memory
Other assembly options for cost or performance optimization plus high volume prices available on request.
Recommended Software
Vivado Standard Edition (free version)
The Vivado StandardEdition is the FREE version of the Vivado design suite.VivadoStandard delivers instant access to some basic Vivado features and functionality at no cost.
Overview Vivado Standard and Enterprise EditionScope of Delivery
- 1 x TE0725LP-01-72C-1 Trenz Electronic FPGA module with AMD Artix 7 100T (without soldered pin headers)
- 2 x pin header, straight, double row
Additional Information
- Manufacturer's article number: TE0725LP-01-72C-1
- Trenz Electronic TE0725LP Wiki
- Support Forum
All modules produced by Trenz Electronicare developed and manufactured in Germany.
| Technical characteristic | Value |
|---|---|
| Item ID | 102965 |
| Condition | New |
| Legacy item ID | 01968567c0e9724f9d7d572a0c57a72c |
| Model | TE0725LP-01-72C-1 |
| Manufacturer | |
| Manufacturing country | Germany |
| Content | 1 piece |
| Weight | 88 g |
| Customs tariff number | 84718000 |
