MPSoC Module with AMD Zynq UltraScale+ ZU3EG-1I, 4 GByte DDR4, 4 x 5,6 cm (AM0010-02-3BI21MA)
AMD Zynq UltraScale+ XCZU3EG-1SFVC784I, 4 GByte DDR4 SDRAM with ECC, 2 x 64 MByte QSPI Flash, Samtec ADM6-60 connector, size: 4 x 5.64 cm
Référence de l’article: VAR-827003585
Numéro de produit du fabricant: AM0010-02-3BI21MA
Code douane: 84718000
Article situé / expédié de : Riedlingen, Allemagne
The predecessor of this article is AM0010-01-3BI21MA. All changes are in the Product Change Notification (PCN).

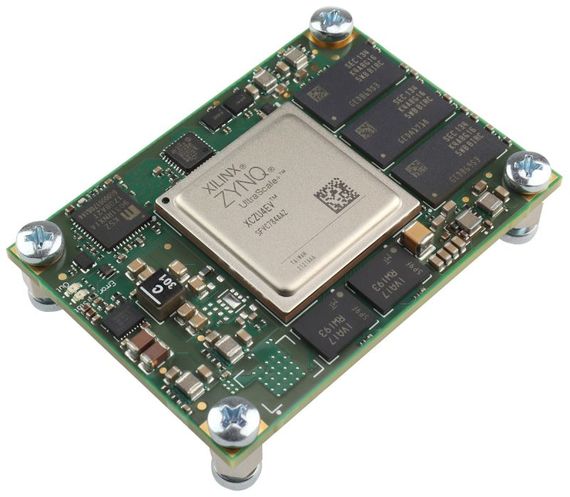

The Trenz Electronic AM0010-02-3BI21MA is a MPSoC module integrating a AMD Zynq UltraScale+ ZU3EG,4 GByte DDR4 SDRAM with ECC,2 x64MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.
All this on a tiny footprint of4 x 5.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.
All parts are at least industrial temperature range of -40C to +85C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.
Key Features
- SoC
- Device: AMD Zynq UltraScale+ XCZU3EG-1SFVC784I
- Engine: EG
- Speedgrade: -1
- Temperature Range: Industrial
- Package: SFVC784
- RAM/Storage
- 4 GByte DDR4 SDRAM with ECC
- 8 GByte eMMC
- 2 x 64 MByte Serial Flash
- EEPROM with MAC address
- On Board
- Gigabit Ethernet Transceiver
- USB Transceiver
- OPTIGA Trust M
- CryptoAuthentication
- Oscillator
- Analog Multiplexer
- Interface
- 2 x B2B Connector (ADM6)
- up to 204 PL IO
- up to 22 PS MIO
- 4 GTR
- 4 GTH
- ETH, USB, I2C, JTAG, ...
- 2 x B2B Connector (ADM6)
- Power
- 5 V ... 12 V power supply via B2B Connector needed
- Dimension
- 40 x 56,4 mm
- 40 x 56,4 mm
Other assembly options for cost or performance optimization plus high volume prices available on request.
Recommended Software
Vivado Standard Edition (free version)
The Vivado StandardEdition is the FREE version of the Vivado design suite.VivadoStandard delivers instant access to some basic Vivado features and functionality at no cost.
Overview Vivado Standard and Enterprise EditionDevelopment Support
Latest documentation, design support files and reference designs with source files are available for download free of charge.
Scope of Delivery
- 1 x AM0010-02-3BI21MA Trenz Electronic MPSoC module with AMD Zynq UltraScale+ ZU3EG
- 8 x screws
- 4 x bolts
Additional Information
- Manufacturer's article number: AM0010-02-3BI21MA
- Trenz ElectronicAM0010 Wiki
- Support Forum
All modules produced by Trenz Electronicare developed and manufactured in Germany.
The online pictures of this product are not a legally binding offer, but are symbol pictures for illustration and presentation only.
| Caractéristique technique | Valeur |
|---|---|
| ID de l’art. | 103099 |
| État | |
| ID de l'ancien article | 0195fb1a49a171fda10f54564cc946a0 |
| Modèle | AM0010-02-3BI21MA |
| Fabricant | |
| Pays de fabrication | Allemagne |
| Contenu | 1 pièce |
| Poids | 100 g |
