Flexible peripheral modules for all your designs

Pmod devices are Digilents line of small I/O interface boards that offer an ideal way to extend the capabilities of programmable logic and embedded control boards. They allow sensitive signal conditioning circuits and high-power drive circuits to be placed where they are most effective - near sensors and actuators.

Pmod modules communicate with system boards using 6, 8, or 12-pin connectors that can carry multiple digital control signals, including SPI and other serial protocols. Pmod modules allow for more effective designs by routing analog signals and power supplies only where they are needed, and away from digital controller boards.

Overview Pmod SF3

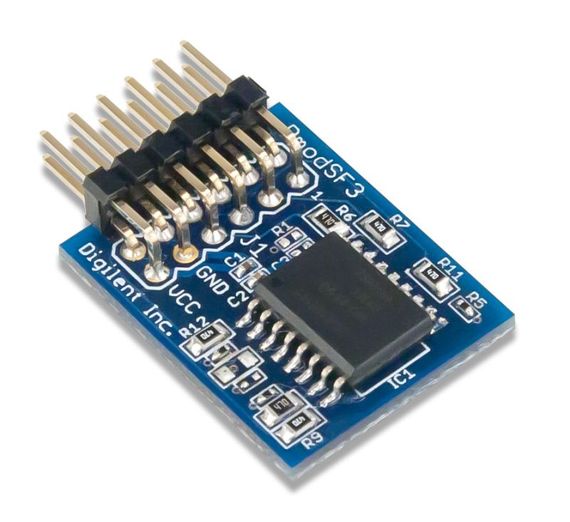

The Pmod SF3 provides users with 32 MB of non-volatile memory through the use of Micron's NOR Flash memory (N25Q256A). By using the SPI protocol, users can both write to and read from the flash memory.

The Pmod SF3 is the replacement for Pmod SF2.

Features

Micron's NOR 32 MB serial NOR Flash memory (N25Q256A)
Supports extended SPI protocol, dual I/O, and quad I/O
Minimum 100,000 erase cycles per sector
More than 20 years data retention
Small PCB size for flexible designs 1.0 0.8 (2.5 cm 2.0 cm)
Follows Digilent Interface Specification Type 2

Scope of Delivery

1 x Pmod SF3 in a custom antistatic Pmod packaging

Pmod Hardware Compatibility Guide

Digilent's guide about determining hardware compatibility.

References

Manufacturer: DigilentInc.
Manufacturer's articlename: Pmod SF3: 32 MB Serial NOR Flash
Manufacturer's article number: 410-340

Resources

Other Digilent products are available on request.

Caractéristique technique	Valeur
ID de l’art.	103344
État
ID de l'ancien article	0195424918177402b33b7b4b3a8610d8
Modèle	410-340
Fabricant	Digilent Inc.
Pays de fabrication	Taiwan
Contenu	1 pièce
Poids	12 g

Digilent Pmod SF3: 32 MB Serial NOR Flash
