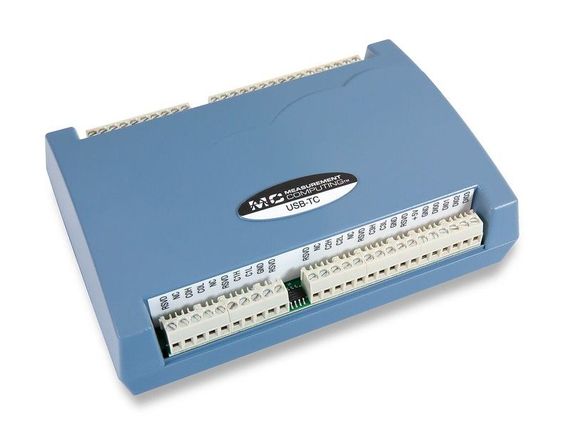

Digilent MCC USB-TC: Thermocouple Measurement DAQ Device (thermocouple only)
USB-TC from Measurment Computing is a USB-based DAQ device for temperature measurement for thermocouple and RTD data acquisition applications.
Référence de l’article: VAR-827003896
Numéro de produit du fabricant: 6069-410-021
Code douane:
Le produit importé est expédié depuis Riedlingen, en Allemagne.
The Measurement Computing USB-TC is an USB-based temperature and voltage measurement DAQ devices. The USB-TC features eight, 24-bit analog inputs for precise thermocouple measurements, 2 S/s/ch sample rate, and 8 digital I/O.
Four channels can be configured to measure various temperature sensors including thermocouples, RTDs, thermistors, and semiconductor sensors. The last four channels are capable of measuring voltage and offer the following input ranges; 10, 5, 2.5, 1.25 V. Eight digital I/O and one counter input are also provided.
These devices are USB-powered and require no external power.
A 24-bit analog-to-digital (A/D) converter is provided for each pair of analog inputs. Users can connect a different category of sensor to each temperature channel pair. Open thermocouple detection (OTD) is provided to detect broken thermocouples. Cold junction compensation (CJC) sensors are provided for TC measurements, and built-in current excitation sources for resistive sensor measurements.
Each channel can be sampled at up to two samples per second for a total device throughput of 16 samples per second. Eight independent, TTL-compatible digital I/O channels are used to monitor TTL-level inputs and communicate with external devices.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, and Python.
Key Features
- 8DIFF analog inputs
- 24-bit resolution
- 8thermocouple inputs (types J, K, R, S, T, N, E, and B)
- 2 S/s/ch sample rate
- 8 digital I/O
- one counter input (USB-TEMP-AI only)
- no external power required
Project Links
Scope of Delivery
- MCC USB-TC
- USB cable
- Printed insert: DAQami Quick Start
- MCC packaging assembly/foam, etc.
References
- Manufacturer: DigilentInc.
- Manufacturer'sarticle name: USB-TC: Thermocouple Measurement DAQ Device (thermocouple only)
- Manufacturer's article number: 6069-410-021
Resources
| Caractéristique technique | Valeur |
|---|---|
| ID de l’art. | 103446 |
| État | |
| ID de l'ancien article | 0196900fd72f7293900e0b03f51a7237 |
| Modèle | 6069-410-021 |
| Fabricant | Digilent Inc. |
| Pays de fabrication | Taiwan |
| Contenu | 1 pièce |
