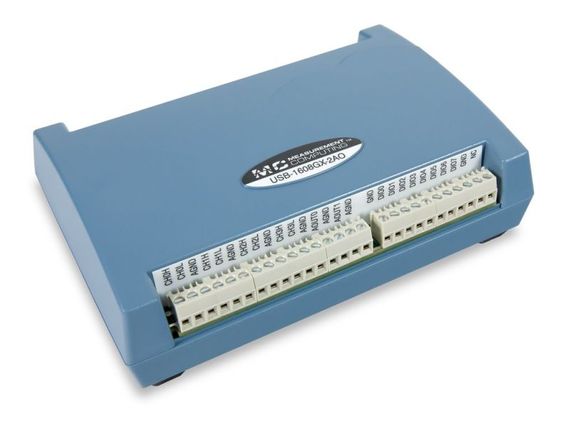

Digilent MCC USB-1608GX-2AO: 500 kS/s High-Speed Multifunction USB DAQ Device
USB-1608GX-2AO from Measurement Computing is a USB-based, high-speed, multifunction DAQ device.
Référence de l’article: VAR-827003870
Numéro de produit du fabricant: 6069-410-011
Code douane:
Le produit importé est expédié depuis Riedlingen, en Allemagne.
The Measurement ComputingUSB-1608GX-2AO is anUSB-based, high-speed, multifunction DAQ devices.The device offers 16 SE/8 DIFF analog inputs, eight digital I/O channels, two counter inputs, and one timer output. The USB-1608GX-2AO features two, 16-bit analog output channels with DAC rates up to 500 kS/s.The deviceis USB-powered and require no external power. The device provides 16-bit analog inputs that are software-selectable as eight DIFF or 16 SE inputs. They also support input ranges of 10 V, 5 V, 2 V, and 1 V that are software-selectable per channel.The device features a maximum 500 kS/s sample rate.
The USB-1608GX-2AO has two 16-bit analog outputs that can be updated at a rate of 250 kS/s per channel; one output can be updated at a rate of 500 kS/s. The output range is fixed at 10 V. USB-1608G Series devices have an external digital trigger input. The trigger mode is software-selectable for edge- or level-sensitive mode. Users can configure edge-sensitive mode for either rising or falling edge. In level-sensitive mode, the trigger can be configured for either high or low level. The default setting at power up is edge sensitive, rising edge.
Eight bidirectional digital I/O lines are individually configurable for input or output. The DIO terminals can detect the state of any TTL-level input. Users can configure for pull-up (+5 V) or pull-down (0 V) with an onboard jumper.
Two 32-bit event counters are provided to count TTL pulses. The counters accept inputs of up to 20 MHz.
A PWM timer output generates a pulse output with a programmable frequency in the range of 0.0149 Hz to 32 MHz. The timer output parameters are software selectable.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python.
Features
- 16 SE/8 DIFF analog inputs
- 16-bit resolution
- 500 kS/s sample rate
- 10 V, 5 V, 2 V, 1 V input ranges
- Eight digital I/O
- Two counter inputs
- One timer output
- No external power required
Project Links
Scope of Delivery
- MCC USB-1608GX-2AO
- USB cable
- Printed insert: DAQami Quick Start
- MCC packaging assembly/foam, etc
References
- Manufacturer: DigilentInc.
- Manufacturer's article name: MCC USB-1608GX-2AO 16-bit, High-Speed Multifunction USB DAQ Device
- Manufacturer's article number: 6069-410-011
Resources
| Caractéristique technique | Valeur |
|---|---|
| ID de l’art. | 103488 |
| État | |
| ID de l'ancien article | 0196900fc042715ba84e35413e956c70 |
| Modèle | 6069-410-011 |
| Fabricant | Digilent Inc. |
| Pays de fabrication | Taiwan |
| Contenu | 1 pièce |
| Poids | 591 g |
