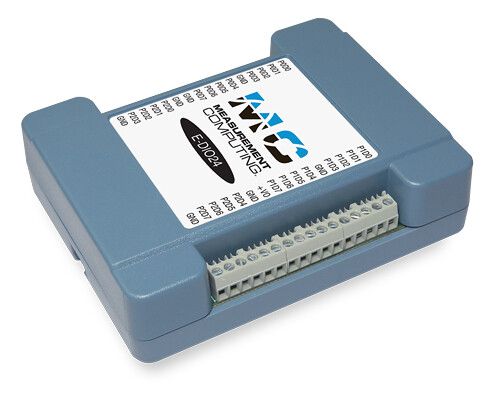

Digilent MCC E-DIO24: 24-Channel Digital I/O Ethernet Device
E-DIO24 from Measurement Computing is a 24-channel digital I/O device ideal for network-based applications and remote monitoring and control.
Référence de l’article: VAR-827003856
Numéro de produit du fabricant: 6069-410-052
Code douane:
Le produit importé est expédié depuis Riedlingen, en Allemagne.
The Measurement Computing E-DIO24 is a 24-channel digital I/O device ideal for network-based applications and remote monitoring and control. The E-DIO24 has a built-in high-speed communication port. Users can remotely access and configure the device with software over the internet.
The E-DIO24 has 24 digital I/O lines configured as three 8-bit ports. Each bit is individually configurable for input or output. Users can enable a digital bit configured for output to change state when a host connection is established or broken. Data can be transferred at rates up to 5kS/s when the device and host are connected by Ethernet to the same local network. Typical throughput is system-dependent. All DIO lines are pulled high by default to 5 V through 47 k? resistors through three onboard jumpers. Each jumper configures one 8-bit digital port and can easily be changed to pull-down.
The 32-bit event counter pin counts TTL pulses and accepts frequency inputs up to 10 MHz.
The E-DIO24 is externally powered by an included 5 VDC power supply.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and Python.
Key Features
- 24 digital I/O lines
- 24 mA drive capability
- Digital output alarm
- One 32-bit event counter (shared with a DIO pin)
- Remote network configuration
- External power supply included
Project Links
Scope of Delivery
- MCC E-DIO24
- 5V 1A power supply
- Printed insert: DAQami Quick Start
- MCC packaging assembly/foam, etc.
References
- Manufacturer: DigilentInc.
- Manufacturer'sarticle name: MCC E-DIO24: 24-Channel Digital I/O Ethernet Device
- Manufacturer's article number: 6069-410-052
Resources
| Caractéristique technique | Valeur |
|---|---|
| ID de l’art. | 103439 |
| État | |
| ID de l'ancien article | 0196902e84637367866669aeecc9385a |
| Modèle | 6069-410-052 |
| Fabricant | Digilent Inc. |
| Pays de fabrication | Taiwan |
| Contenu | 1 pièce |
