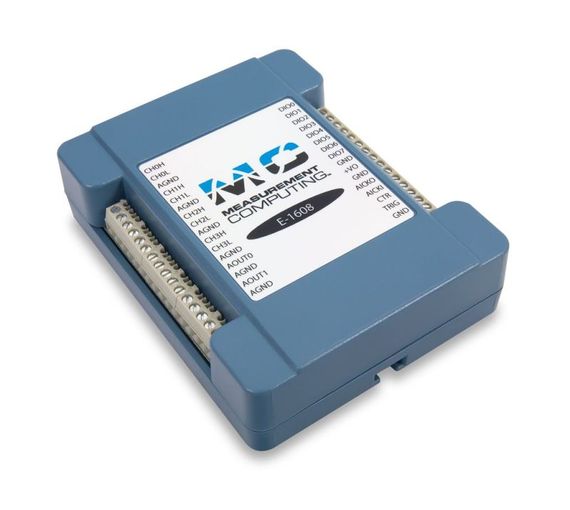

Digilent MCC E-1608: Multifunction Ethernet DAQ Device
The Measurement Computing E-1608 is an ethernet-based DAQ device and features 8 SE/4 DIFF analog inputs, 16-bit resolution, 250 kS/s sample rate, two 16-bit analog outputs, eight digital I/O, and one 32-bit counter input.
Référence de l’article: VAR-827003855
Numéro de produit du fabricant: 6069-410-016
Code douane:
Le produit importé est expédié depuis Riedlingen, en Allemagne.
The Measurement Computing E-1608 is an ethernet-based DAQ device and features 8 SE/4 DIFF analog inputs, 16-bit resolution, 250 kS/s sample rate, two 16-bit analog outputs, eight digital I/O, and one 32-bit counter input. The device supports input ranges of 10 V, 5 V, 2 V, and 1 V that are software-selectable per channel.
The E-1608 has a built-in 10/100 BASE-T auto-negotiation, high-speed communication port. The networking protocols are TCP/IP and UDP. Once connected to the network, the device can be remotely accessed and configured through software from anywhere on the network. Only one user at a time can access the E-1608. Software is required to actively communicate with the E-1608 over Ethernet. The device does not operate as a standalone data logger. The device is externally powered via an included power supply. The E-1608 has two 16-bit, software-paced analog outputs that can be updated at a rate of 500 S/s. The output range is fixed at 10 V. The E-1608 has an external digital trigger input. The trigger mode is software-selectable for edge- or level-sensitive mode. Edge-sensitive mode can be configured for either rising or falling edge. Level-sensitive mode can be configured for either high or low level. The default setting at power up is edge-sensitive, rising edge.
Eight bidirectional digital I/O bits are individually-configurable for input or output. The digital I/O terminals can detect the state of any TTL-level input. Bits can be configured for pull-up (+5V) or pull-down (0 V) with an onboard jumper.
One 32-bit event counter can count TTL pulses. The counter accepts inputs of up to 10 MHz. The E-1608 has one external clock input and one clock output for analog inputs.
Key Features
- 8 SE/4 DIFF analog inputs
- 16-bit resolution
- 250 kS/s sample rate
- 10 V, 5 V, 2 V, 1 V input ranges
- Two 16-bit analog outputs
- Eight digital I/O
- One counter input
Project Links
Scope of Delivery
- MCC E-1608
- Ethernet Cable 1M
- Power Supply, 5 VDC Output
- Field Changeable AC Input Plug (USA style is included,other types may be purchased separately)
- Printed insert: DAQami Quick Start
- MCC packaging assembly/foam, etc.
References
- Manufacturer: DigilentInc.
- Manufacturer'sarticle name: MCC E-1608: Multifunction Ethernet DAQ Device
- Manufacturer's article number: 6069-410-016
