Digilent Inc.

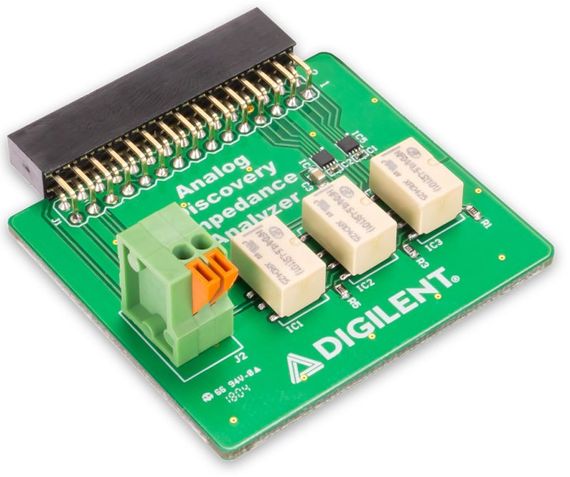

Digilent Impedance Analyzer for Analog Discovery
Integrates with the Impedance Analyzer tool in WaveForms.
Item number VAR-827003837
Manufacturer Product Number: 410-378
Taric/custom code:
Imported produkt is shipped from Riedlingen, Germany
The Impedance Analyzer for Analog Discovery was designed with automatically adjusting reference resistors and relays to aid in use of the Impedance Analyzer tool in WaveForms. With the Impedance Analyzer accessory, the Analog Discovery will automatically select the most appropriate configuration for the attached unknown impedance. The Impedance Analyzer is loaded with the 215 Analog Discovery connector, which makes it compatible with Analog Discovery 2 as well as Analog Discovery Legacy.
Features
- 2-wire Impedance Analyzer integrates with the Impedance Analyzer tool in WaveForms
- 50pF - 500F Capacitance Measurement Range
- 10H - 1000mH Inductance Measurement Range
- 1Hz - 15MHz Excitation Frequency Range
Note: Use of this adapter requires WaveForms version 3.8.2 or later.
Scope of Delivery
- 1 x Analog Discovery 2 Impedance Analyzer
- Custom Anti-Static Packaging
References
- Manufacturer: DigilentInc.
- Manufacturer's article name: Impedance Analyzer for Analog Discovery
- Manufacturer's article number: 410-378
Resources
| Technical characteristic | Value |
|---|---|
| Item ID | 103350 |
| Condition | New |
| Legacy item ID | 019686a1d0967312843f120286968c26 |
| Model | 410-378 |
| Manufacturer | Digilent Inc. |
| Manufacturing country | Taiwan |
| Content | 1 piece |
| Weight | 41 g |
| Customs tariff number |
