This product is not always in stock, but will be produced on customer order (on demand).
Please ask for any minimum quantities.

This article is the replacement for the TEC0053-03.

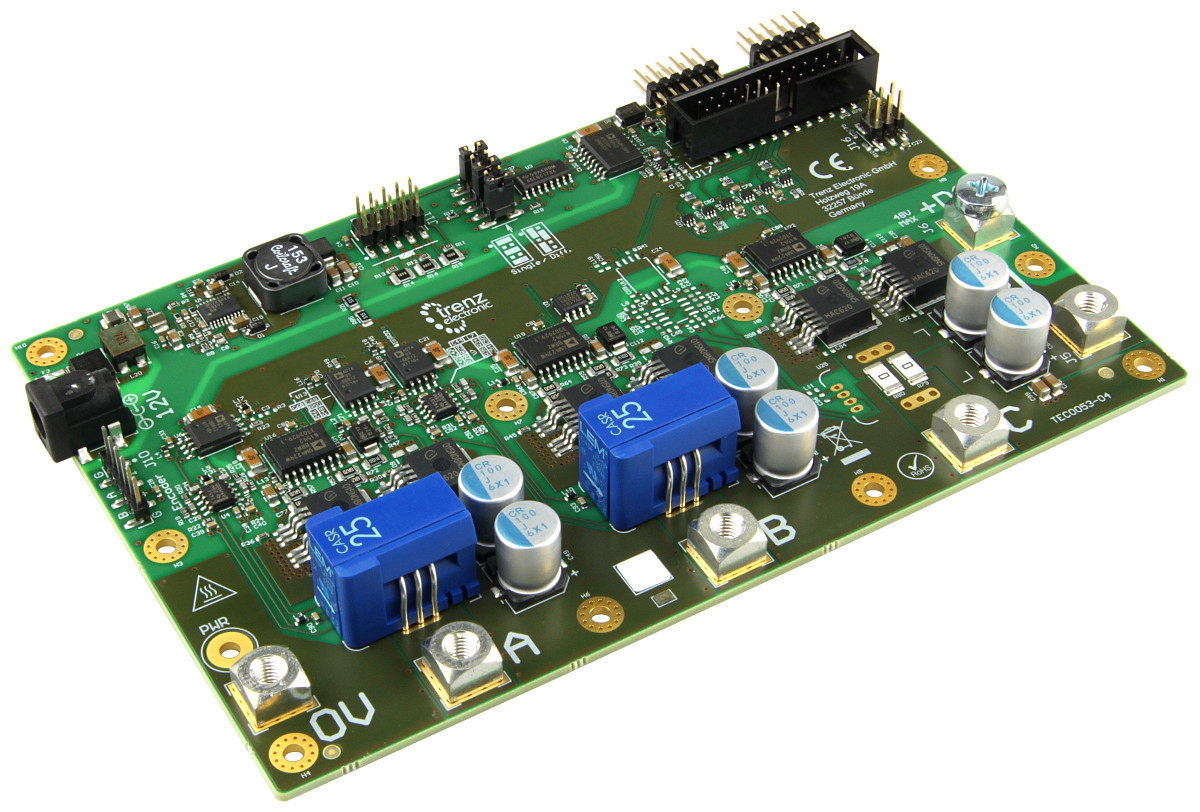

An Electric Drive Power Stage Board, needed for the EDDP Kit.

Key Features

Evaluation of Motor Control with a suitable Controller Board
Power option up to 48V and 30A main supply current
MOSFET power stage supporting 3-phase BLDC motors
Current measurement on 2-phases (3 phase measurement is optional)
On-board temperature sensor and 1-wire bus connector for additional sensors
Encoder input capable of receiving both single ended and differential signals

Other assembly options for cost or performance optimization plus high volume prices available on request.

Scope of Delivery

1 x TEC0053-04 Trenz Electronic EDPS Power Stage
1 x fuse 58V 30A slow bolt mount
1 x TEC0053 - protection cover
4 x bolts M3 20 mm
8 x screws M3 x 6

Additional Information

Manufacturer's article number: TEC0053-04
EDDP Kit Quick Start Guide
EDPS User Manual
Support Forum

All modules produced by Trenz Electronic are developed and manufactured in Germany.

Art.-ID	100607
Zustand	Neu
Legacy item ID	2748
Modell	TEC0053-04
Hersteller	Trenz Electronic GmbH
Herstellungsland	Deutschland
Inhalt	1 Stück
Gewicht	416 g
Netto-Gewicht	416 g
