Flexible peripheral modules for all your designs

Pmod devices are Digilents line of small I/O interface boards that offer an ideal way to extend the capabilities of programmable logic and embedded control boards. They allow sensitive signal conditioning circuits and high-power drive circuits to be placed where they are most effective - near sensors and actuators.

Pmod modules communicate with system boards using 6, 8, or 12-pin connectors that can carry multiple digital control signals, including SPI and other serial protocols. Pmod modules allow for more effective designs by routing analog signals and power supplies only where they are needed, and away from digital controller boards.

Overview Pmod RJ45

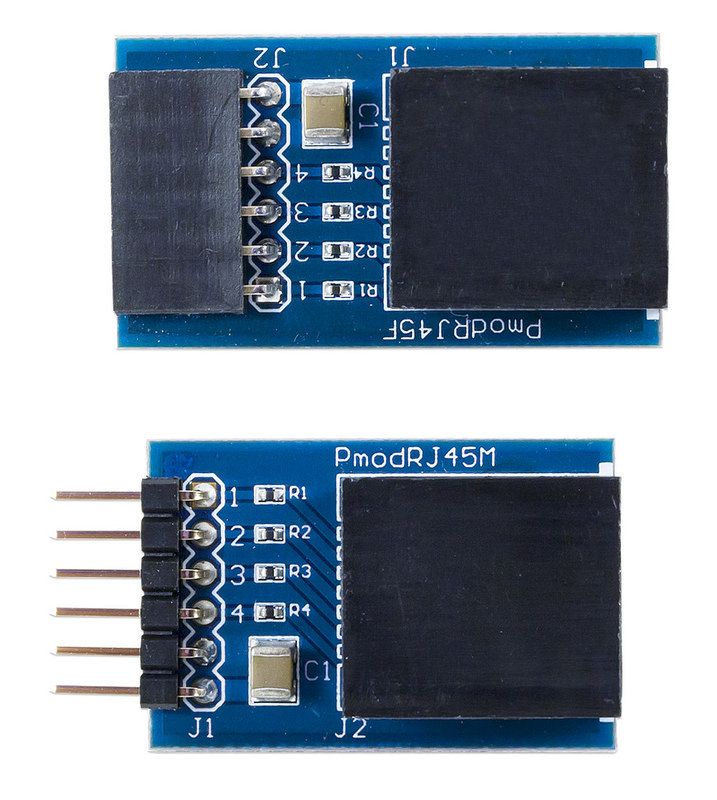

The Pmod RJ45 connector modules can offer an extended wired connection between two different systems. Shipped as a pair of male and female modules, users can connect the two together with an Ethernet cable to communicate via the Ethernet protocol or as simple GPIO lines.

Features

Standard RJ45 (8P8C) port
Male and female connectors for host and peripheral connectivity
Small PCB size for flexible designs 1.4 0.8 (3.6 cm 2.0 cm)
6-pin Pmod connector with GPIO interface
Follows Digilent Pmod Interface Specification Type 1

Scope of Delivery

Two Pmod RJ45 in a custom antistatic Pmod packaging

Pmod Hardware Compatibility Guide

Digilent's guide about determining hardware compatibility.

References

Manufacturer: DigilentInc.
Manufacturer's article name: Pmod RJ45: RJ45 connector (pair)
Manufacturer's article number: 410-115

Resources

Other Digilent products are available on request.

Technisches Merkmal	Wert
Art.-ID	103308
Zustand	Neu
Legacy item ID	0196900f12e07300bcd2244582ee9fb5
Modell	410-115
Hersteller	Digilent Inc.
Herstellungsland	Taiwan
Inhalt	1 Stück
Gewicht	53 g

Digilent Pmod RJ45: RJ45 connector (pair)
