Flexible peripheral modules for all your designs

Pmod devices are Digilents line of small I/O interface boards that offer an ideal way to extend the capabilities of programmable logic and embedded control boards. They allow sensitive signal conditioning circuits and high-power drive circuits to be placed where they are most effective - near sensors and actuators.

Pmod modules communicate with system boards using 6, 8, or 12-pin connectors that can carry multiple digital control signals, including SPI and other serial protocols. Pmod modules allow for more effective designs by routing analog signals and power supplies only where they are needed, and away from digital controller boards.

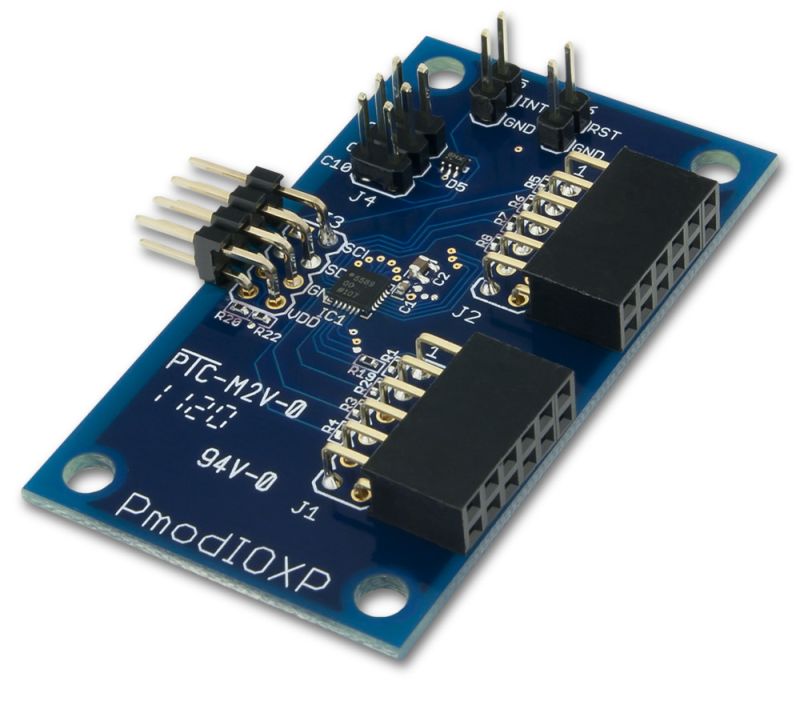

Overview Pmod IOXP

The Pmod IOXP is an I/O expansion module powered by the Analog Devices ADP5589. By communicating with the chip through I2C, users can take advantage of up to 19 additional I/O pins as well as a keypad matrix decoder.

Features

Uses the Analog Devices ADP5589
Communicates via the I2C interface
16-element FIFO for event recording
19 configurable I/Os
Built in keypad decoding for matrices up to 11x8
PWM generator
Open-drain interrupt output
Dual Programmable logic blocks
Debouncing on IOs

Scope of Delivery

1 x Pmod IOXP in a custom antistatic Pmod packaging

Pmod Hardware Compatibility Guide

Digilent's guide about determining hardware compatibility.

References

Manufacturer: DigilentInc.
Manufacturer's article name: Pmod IOXP - I/O Expansion Module
Manufacturer's article number: 410-219

Resources

Other Digilent products are available on request.

Technisches Merkmal	Wert
Art.-ID	103334
Zustand	Neu
Legacy item ID	019686a1bad2714a8537efcdc8273cbe
Modell	410-219
Hersteller	Digilent Inc.
Herstellungsland	Taiwan
Inhalt	1 Stück
Gewicht	19 g
