Flexible peripheral modules for all your designs

Pmod devices are Digilents line of small I/O interface boards that offer an ideal way to extend the capabilities of programmable logic and embedded control boards. They allow sensitive signal conditioning circuits and high-power drive circuits to be placed where they are most effective - near sensors and actuators.

Pmod modules communicate with system boards using 6, 8, or 12-pin connectors that can carry multiple digital control signals, including SPI and other serial protocols. Pmod modules allow for more effective designs by routing analog signals and power supplies only where they are needed, and away from digital controller boards.

Overview Pmod BTN

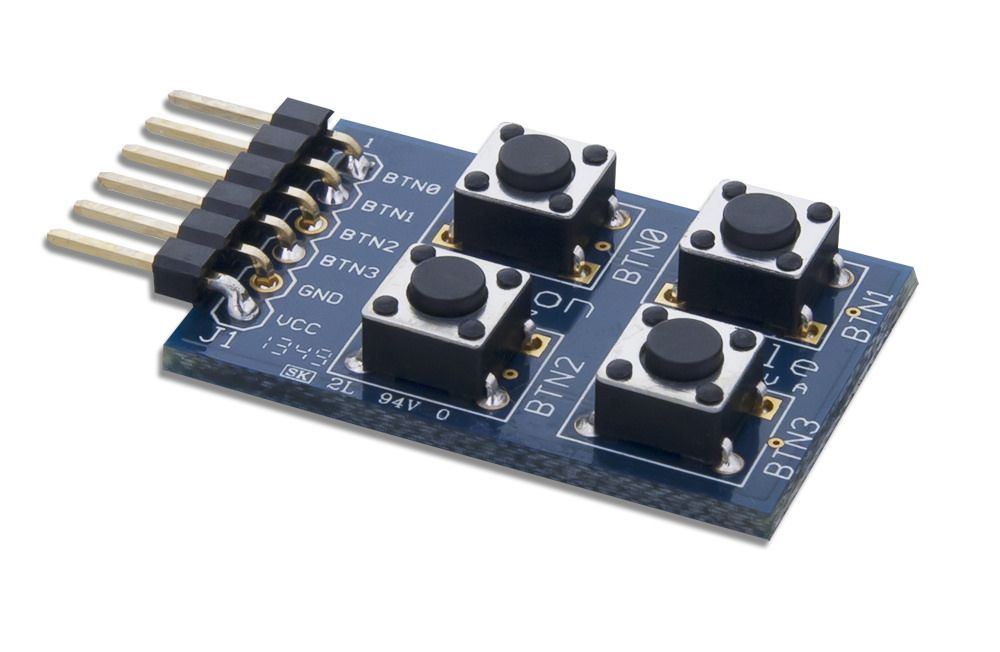

The Pmod BTN gives users four momentary pushbuttons for easy user inputs to a system board.

Features:

Four momentary pushbuttons
Debouncing filters
Inverting Schmitt Triggers
Small PCB size for flexible designs 1.2 0.8 (3.0 cm 2.0 cm)
6-pin Pmod connector with GPIO interface
Follows Digilent Pmod Interface Specification Type 1

Scope of Delivery

1 x Pmod BTN

Pmod Hardware Compatibility Guide

Digilent's guide about determining hardware compatibility.

References

Manufacturer: DigilentInc.
Manufacturer'sarticle names: Pmod BTN: 4 User Pushbuttons
Manufacturer's article number: 410-077

Resources

Other Digilent products are available on request.

Technisches Merkmal	Wert
Art.-ID	103286
Zustand	Neu
Legacy item ID	0196900f0f6572519d1d72b11775e26f
Modell	410-077
Hersteller	Digilent Inc.
Herstellungsland	Taiwan
Inhalt	1 Stück
Gewicht	12 g

Digilent Pmod BTN: 4 User Pushbuttons
