Digilent MCC USB-2416-4AO: Expandable USB-DAQ-Device
The device is ideal for applications measuring voltage or temperature data.
Artikelnummer VAR-827003881
Hersteller-Teilenummer: 6069-410-023
Taric/custom code:
Importierter Artikel wird versendet ab D-Riedlingen.

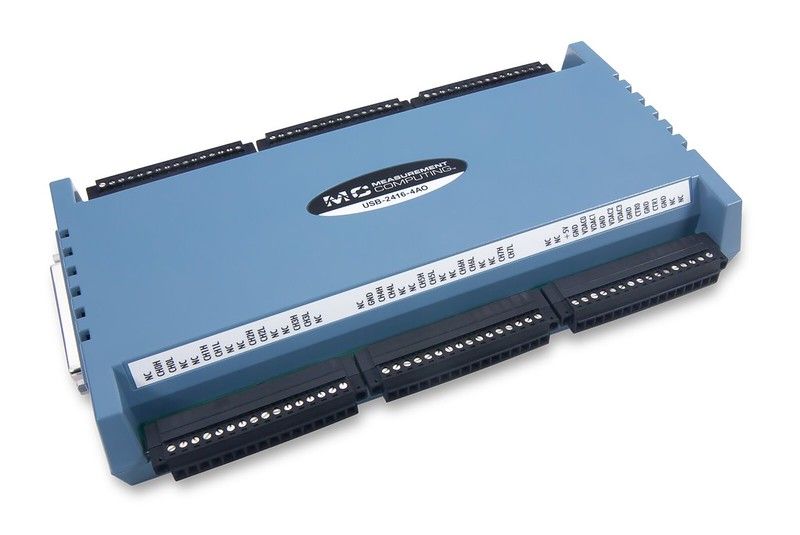

The Measurement Computing USB-2416-4AO is ideal for higher channel count applications measuring voltage or thermocouples. Features include expandable analog and digital I/O along with counter functions.
The USB-2416-4AO features 32 SE/ 16 DIFF, 16-bit analog inputs for measuring voltage or thermocouples measurements (thermocouples are measured in DIFF mode), 1 kS/s sample rate, four analog outputs, 8 digital I/O, and two counter inputs.
The device provides 32 SE/16 DIFF analog inputs, expandable to 64 SE/32 DIFF (using AI-EXP32). Software-selectable voltage input ranges are configurable per-channel.
The USB-2416-4AO provides four 16-bit analog outputs with a 10 V output range. The analog outputs can be updated at a maximum rate of 1 kS/s (system dependent).
The USB-2416-4AO also provides eight digital I/O lines with read/write rates of 500 port or single bit reads per second. Each DIO channel is an open-drain. Digital outputs can sink up to 150 mA for direct drive applications. The maximum sink current is 150 mA per eight-channel bank, or if all eight channels are used, 18 mA (maximum) per channel.
The device has two 32-bit event counters that accept frequency inputs up to 1 MHz. The internal counter increments when the TTL levels transition from low to high.
The AI-EXP32 expansion device provides an additional 32 SE/16 DIFF analog inputs and 16 DIO lines. The AI-EXP32 supports all analog/thermocouple input and digital I/O features of the USB-2416 Series devices to which it is connected. The USB-2416 Series docks directly to the AI-EXP32 with an expansion connector on each device. No additional cable is required. The AI-EXP32 receives power from the connected USB-2416 Series device.
The USB-2416-4AO is externally powered by an included 5 VDC power supply.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and Python.
Key Features
- USB-2416-4AO: 32 SE/ 16 DIFF analog inputs
- 16-bit resolution
- 1 kS/s sample rate
- Supports thermocouple types J, K, R, S, T, N, E, and B
- 20 V, 10 V, 5 V, 2.5 V, 1.25 V, 625 mV, 312.5 mV, 156.25 mV, 78.125 mV input ranges
- Four 16-bit analog outputs
- Eight digital I/O (24 digital I/O when using AI-EXP32)
- Two counter inputs
Project Links
Scope of Delivery
- USB-2416-4AO
- USB cable
- Power Supply, 5 VDC Output
- AC Input Plug (USA style is included, other types may be purchased separately)
- Printed insert: DAQami Quick Start
- MCC packaging assembly/foam, etc.
References
- Manufacturer: DigilentInc.
- Manufacturer'sarticle name: MCC USB-2416-4AO: Expandable Thermocouple and Voltage Measurement USB DAQ Device
- Manufacturer's article number: 6069-410-023
Resources
| Technisches Merkmal | Wert |
|---|---|
| Art.-ID | 103507 |
| Zustand | Neu |
| Legacy item ID | 0196900fecc270b38737d5e0ca5e229d |
| Modell | 6069-410-023 |
| Hersteller | Digilent Inc. |
| Herstellungsland | Taiwan |
| Inhalt | 1 Stück |
