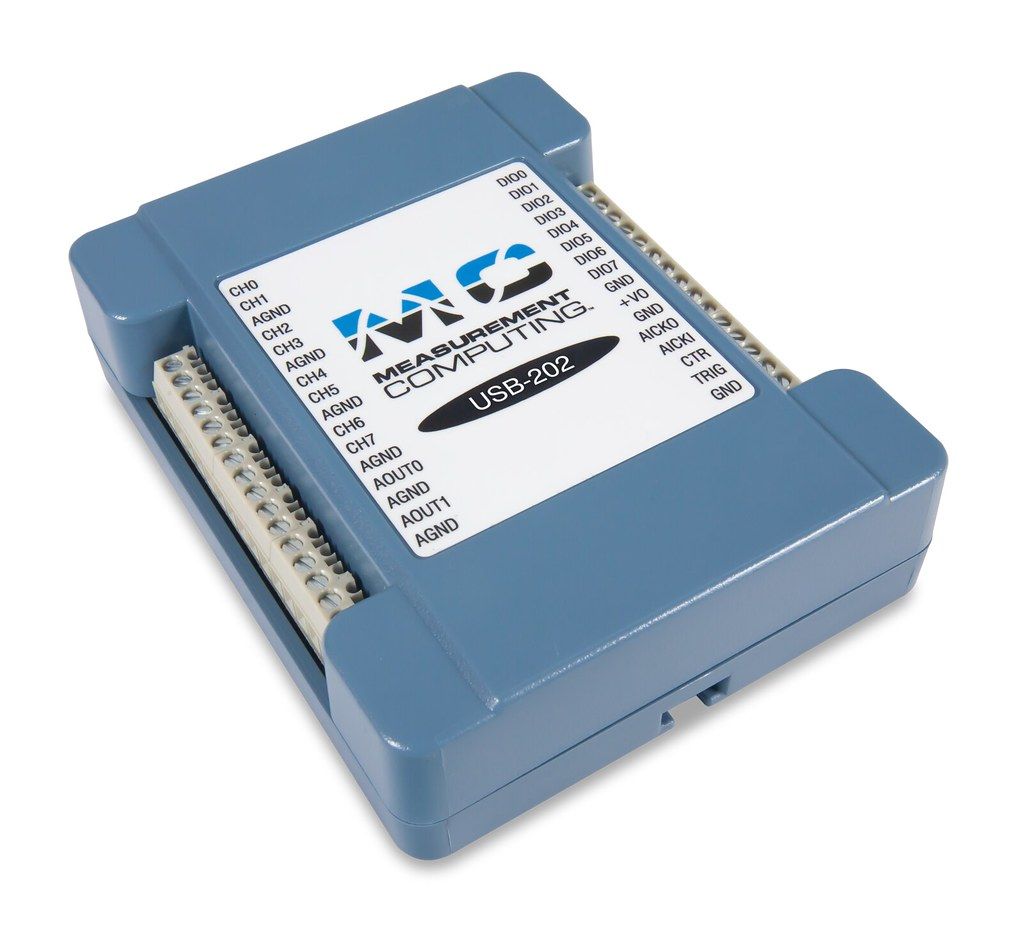

Digilent MCC USB-202: 12-bit, 100 kS/s Single Gain Multifunction USB DAQ Device
The Measurement Computing USB-202 is a low-cost, USB-based, multifunction DAQ device designed for general data acquisition application with two analog outputs.
Artikelnummer VAR-827003874
Hersteller-Teilenummer: 6069-410-008
Taric/custom code:
Importierter Artikel wird versendet ab D-Riedlingen.
The Measurement Computing USB-202is anlow-cost, USB-based multifunction DAQ device designed for general purpose data acquisition applications.This device features eight, 12-bit SE analog voltage inputs, two analog outputs, eight digital I/O, and one counter input. The USB-202 features a maximum 100 kS/s sample rate. The analog input range is fixed at 10 V. This deviceis USB-powered and requires no external power.
The USB-202 features two 12-bit analog output channels. Outputs can be updated simultaneously at a rate up to 125 S/s per channel. One output can be updated at a rate up to 250 S/s. The output range is fixed at 0 V to 5 V. Each USB-200 Series device provides one external clock input and one clock output for the analog input pacer. Users can connect an external clock signal to the external clock input terminal. When using the internal clock, each device outputs the ADC sample clock.
This device also provide eight TTL-level digital I/O lines. Each digital channel is software-selectable for input or output. When configured for output, each digital channel can source/ sink up to 24 mA. Each USB-200 Series device supports one 32-bit TTL-level event counter that accepts inputs up to 1 MHz.Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python.
Key Features
- Eight SE analog inputs
- 12-bit resolution
- USB-202: 100 kS/s sample rate
- +/-10 V input range
- Two analog outputs
- Eight digital I/O
- One 32-bit event counter input
- External pacer I/O
- No external power required
Project Links
Scope of Delivery
- MCC USB-202
- USB cable
- Printed insert: DAQami software quick start
- MCC packaging assembly/foam, etc.
References
- Manufacturer: DigilentInc.
- Manufacturer'sarticle name: MCC USB-202 12-bit, 100 kS/s Single Gain Multifunction USB DAQ Device
- Manufacturer's article number: 6069-410-008
Resources
| Technisches Merkmal | Wert |
|---|---|
| Art.-ID | 103413 |
| Zustand | Neu |
| Legacy item ID | 0196900fbe9b72aeadd98aba59a1fef3 |
| Modell | 6069-410-008 |
| Hersteller | Digilent Inc. |
| Herstellungsland | Taiwan |
| Inhalt | 1 Stück |
