Digilent Genesys ZU-5EV: Zynq Ultrascale+ MPSoC Development Board - academic
The Genesys ZU-5EV is designed with high-definition video in mind, and is ideal for multimedia, automotive ADAS, surveillance, and other embedded vision applications.
Artikelnummer VAR-827003834
Hersteller-Teilenummer: 410-383-5EV
Taric/custom code:
Importierter Artikel wird versendet ab D-Riedlingen.
Sale of academic articles only within Germany and Austria.

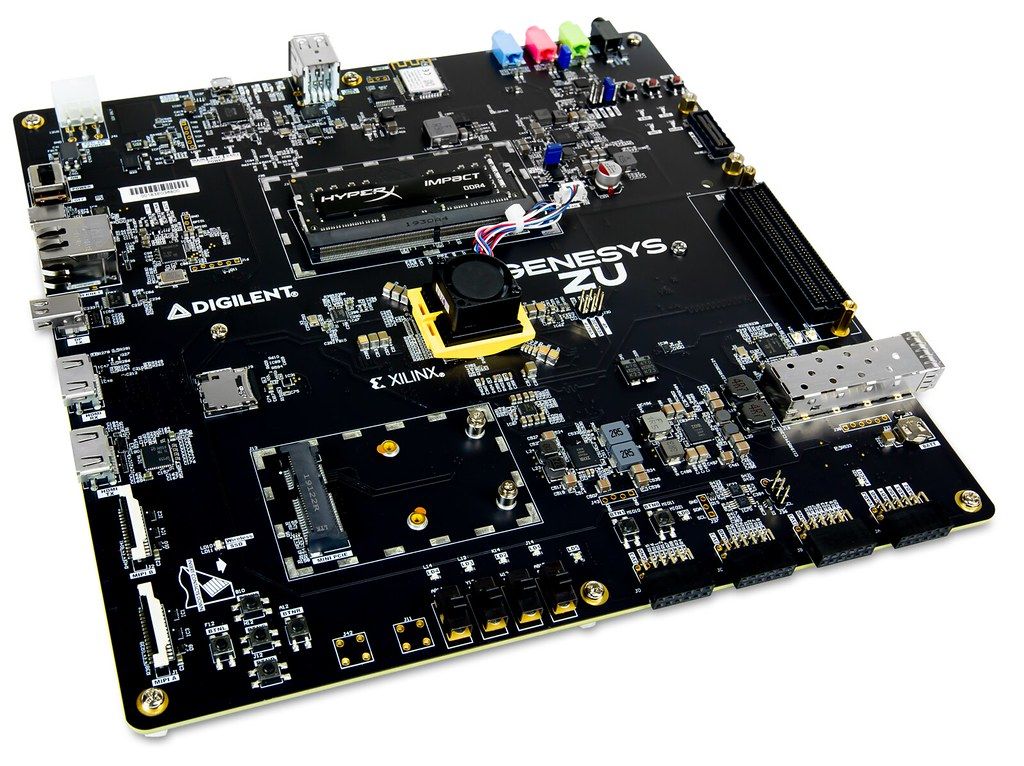

The Genesys ZU-5EV is designed with high-definition video in mind, and is ideal for multimedia, automotive ADAS, surveillance, and other embedded vision applications. The board features a Xilinx Zynq UltraScale+ MPSoC (Multi-Processing System on Chip) EV device.
The ZU5EV is equipped with a quad-core Arm Cortex-A53 applications processor, dual-core Cortex-R5 real-time processor, Mali-400 MP2 graphics processing unit, 4KP60 capable H.264/H.265 video codec, and 16nm FinFET+ programmable logic. The excellent mix of on-board peripherals, upgrade-friendly DDR4, Mini PCIe and microSD slots, multi-camera, a video codec, and GTH transceivers allowing HDMI Source, Sink and 10G SFP+ to support a wide number of use-cases.
Different specialized ports, including FMC Gigabit expansion ports, Pmod and high-speed SYZYGY-compliant expansion module ports for our new Zmods, enable flexible expansion and easy access to a wide ecosystem of add-on modules, perfect for silicon evaluation and rapid prototyping.
Features
- XCZU5EV-SFVC784-1-E (with heat sink and fan)
- Quad-core ARM Cortex-A53 Application Processing Unit
- Dual-core ARM Cortex-R5 Real-Time Processing Unit
- Mali-400 MP2 graphics processing unit
- 256K logic cells
- Memory:
- 4 GiB DDR4 SODIMM module
- ISSI 256 MB SNOR Flash
- MicroSD Card Slot
- Peripheral connectivity:
- USB Type-C 3.1 Gen1 Dual-Role Device
- MiniPCIe / mSATA dual slot
- USB 2.0 Host
- Network connectivity:
- 2.4 GHz on-board WiFi
- 1G w/IEEE 1588 Ethernet
- SIM card slot
- WLAN/WWAN/LoRa: option - MiniPCIe
- SFP+ 10G Ethernet
- Multimedia:
- 1.2a Dual-Lane Display Port
- 2 x Pcam Dual-Lane
- Audio Codec
- H.264/H.265
- HDMI Source
- HDMI Sink
- Expansion:
- 1 x FMC expansion connector
- 1 x FMC Gigabit
- 1 x SYZYGY port
- 4 x Pmod ports
- GPIO: LED, Buttons, Switches
Target Applications
- Situational Awareness
- Surveillance/Reconnaissance
- Smart Vision
- Image Manipulation
- Graphic Overlay
- Human Machine Interface
- Automotive ADAS
- Video Processing
- Interactive Display
Project Links
- Installing Vivado, Xilinx SDK and Digilent Board Files
- Note: When installing Vivado, make sure to include support for Zynq Ultrascale+ parts.
- Note: Digilent projects for the Genesys ZU are currently only supported in Vivado 2019.1.
- Getting Started with Vivado IP Integrator
- Note: This guide was originally written for non-Ultrascale Zynq boards and boards using Microblaze. The flow for Ultrascale Zynq is largely the same as non-Ultrascale Zynq. The Zynq Ultrascale+ MPSoC IP core should be used in place of the ZYNQ7 Processing System.
- Getting Started with the Genesys ZU
- Genesys ZU Out-of-Box Vivado Project
- Genesys ZU Out-of-Box Petalinux Project
- Genesys ZU 5EV HDMI Demo Project
Scope of Delivery
- 1 x Genesys ZU-5EV: Zynq Ultrascale+ MPSoC Development Board
- Power Supply, Desktop, 12V, 8A, w/PCIE Connector
- IEC cable, EU, 1.2 meter
- USB A TO MICRO B CABLE
- Cable, USB, A to Type C, 15 cm
- JTAG HS1
- Voucher for the Xilinx MIPI CSI-2 IP cores
References
- Manufacturer: DigilentInc.
- Manufacturer's article name: Genesys ZU-5EV: Zynq Ultrascale+ MPSoC Development Board
- Manufacturer's article number: 410-383-5EV
Resources
Articles with academic pricing may be sold by us only within Germany and Austria. Ifyou are located in following countries, please order from your local distributor.
Academic articles are technically identical to their corresponding non-academic article.
In order to process an academic order, these documents are strictly required:
- an official order by school/university/eligible institution
OR - a copy or scan of the matriculation certificate as well as the university email address of the student
No academic order will be accepted and processed if these documents are missing.
These data will be transmitted in the course of proper fulfillment of the contractual purpose(General Data Protection Regulation, chapter6sentence 1 b) to the manufacturer of this article:
Digilent, Inc.
P.O. Box 428 Pullman
WA 99163-0428.
Privacy Policy from Digilent Inc. https://store.digilentinc.com/privacy-policy/
If you do not agree to the transfer of data, there is no possibility to order this article with academic pricing. Furthermore, you are entitled at any time to request comprehensive information on the data stored about your person. You can also request the correction, deletion and blocking of individual personal data at any time.
Please send us the data by e-mail to sales@trenz-electronic.de after ordering.
