Digilent Breadboard Breakout for Analog Discovery

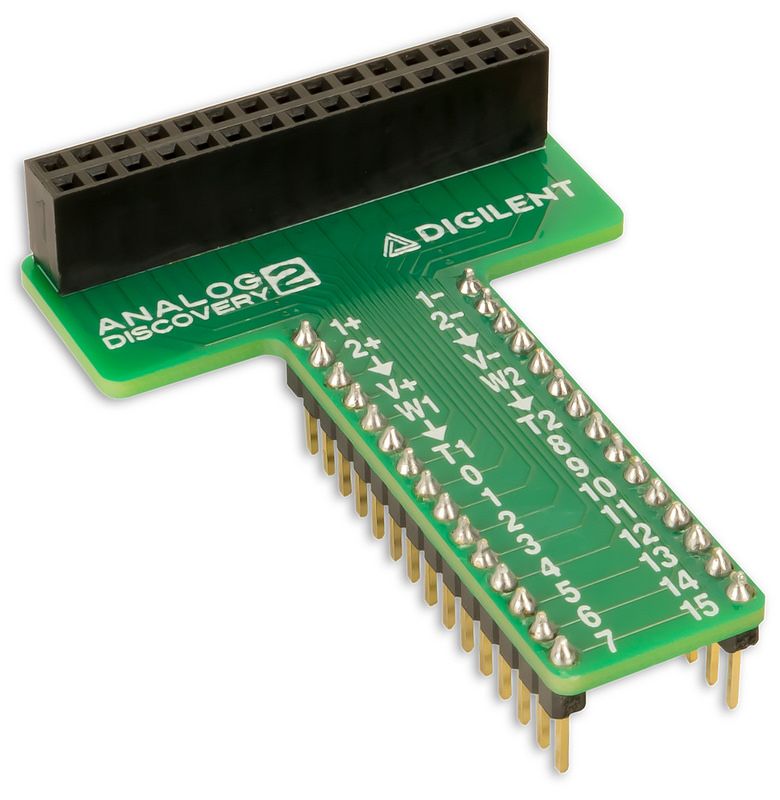

The Breadboard Breakout is designed to be used with the Analog Discovery to provide a secure connection with any breadboard. It provides a female header to pass through all connections from the Analog Discovery as well as a Cmod style breakout with standard breadboard spaced pins.

We also offer the Ribbon Cable for Analog Discovery, which is a great add-on to the Breadboard Breakout for Analog Discovery to extend the reach of the Analog Discovery connector without needing to plug in individual wires.

Note: The Breadboard Breakout for Analog Discovery shares the same physical connector as the OpenScope MZ, but the pin mapping is not the same. Make sure to check the pin diagram of the OpenScope MZ before using the Breadboard Breakout with this device.

Features

• Provides a direct connection with Digilent's Analog Discovery devices
• Standard spacing for breadboard breakout pins
• Labels for breadboard breakout pins corresponding to Analog Discovery header connections

Scope of Delivery

• 1 x Breadboard Breakout for Analog Discovery and
• 2 x 15 Gender Changer
  both in a custom anti-static packaging

References

• Manufacturer: DigilentInc.
• Manufacturer's article name: Breadboard Breakout for Analog Discovery
• Manufacturer's article number: 410-373

Resources

• Product page with datasheet at Digilent Inc.
• Getting Started with the Breadboard Breakout for Analog Discovery 2
• Digilent Inc. Support Forum
