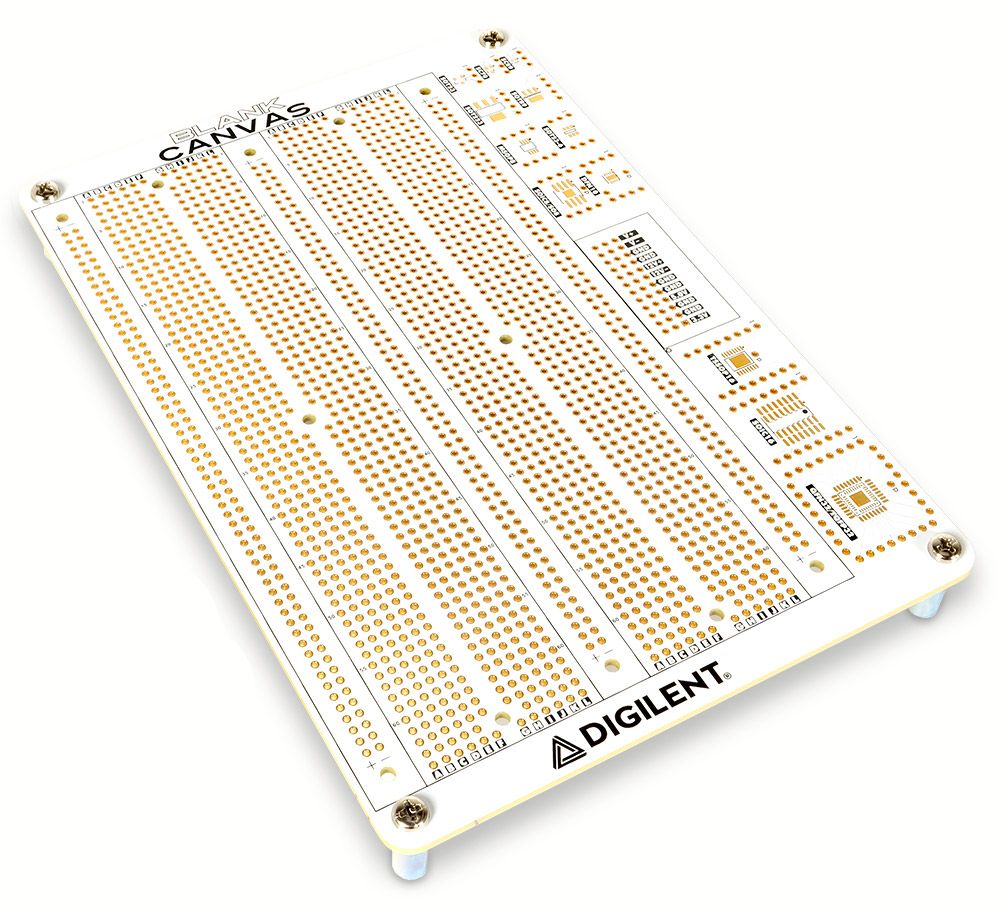

Digilent Blank Canvas
The Blank Canvas provides a large prototyping surface for the Analog Discovery Studio and connections to the six power supplies (3.3V, 5V, 12V, variable).
Artikelnummer VAR-827003793
Hersteller-Teilenummer: 471-032
Taric/custom code:
Importierter Artikel wird versendet ab D-Riedlingen.
The Blank Canvas provides a large prototyping surface for the Analog Discovery Studio and connections to the six power supplies (3.3V, 5V, 12V, variable). The large prototyping surface has been wired in the configuration of two standard breadboards with 3 power rails for convenience. The connections to the power supplies are available as copper pads that can be soldered on directly, or the included power supply breadboard can be soldered on for a solderless connection. Eleven breakouts are provided at the top of the board for common IC package types. Two solderless breadboards can be optionally added to provide a solderless breadboard surface.
Scope of Delivery
- Blank Canvas
- 2x12 power breadboard (not attached)
- Plastic Canvas Case
References
- Manufacturer: DigilentInc.
- Manufacturer'sarticlename: Blank Canvas
- Manufacturer's article number: 471-032
Resources
| Technisches Merkmal | Wert |
|---|---|
| Art.-ID | 103377 |
| Zustand | Neu |
| Legacy item ID | 0195424918177402b33b7b4b3a8610d8 |
| Modell | 471-032 |
| Hersteller | Digilent Inc. |
| Herstellungsland | Taiwan |
| Inhalt | 1 Stück |
