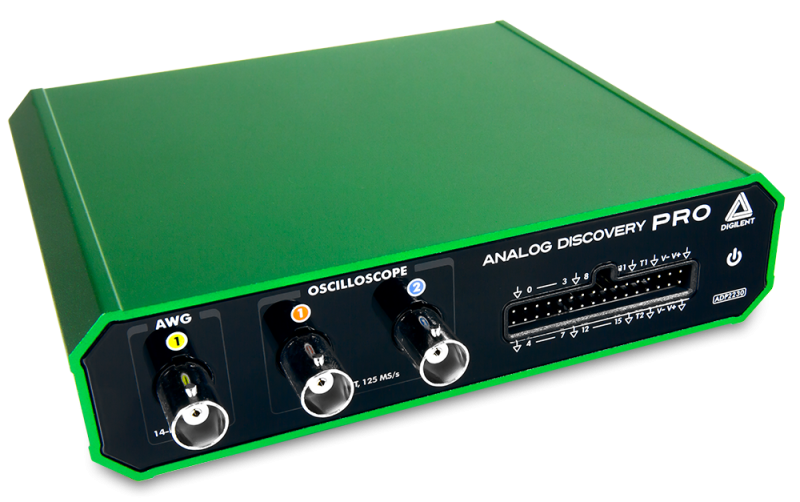

The ADP2230 is a mixed-signal oscilloscope (MSO) that allows users to measure, visualize, generate, record, and control circuits of all kinds. Designed with professional engineers in mind, the USB-based device features two analog inputs (50 MHz bandwidth, 14-bit resolution), one analog output, and 16 digital I/O. The device includes BNC connectors and a sturdy aluminum case, providing maximum utility within a minimal footprint. The ADP2230 includes deep memory buffers for long acquisitions and the ability to sync multiple devices for increased channel count. Users can both receive and generate digital data to test and analyze data from both processors and sensors, while simultaneously powering those systems with its robust power supply.

With the included WaveForms software, users can view and capture complex data, perform spectral and network analysis, and quickly retrieve large amounts of data. WaveForms friendly user interface has the feel of traditional benchtop software.

The feature-packed design allows the ADP2230 to perform the functions of several test and measurement devices and can replace a stack of traditional instruments.

Software

WaveForms is the free software application for the ADP2230 and enables use of the available analog and digital instruments. The hardware device communicates with WaveForms via a USB connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. In addition to the use of instruments in the application, the WaveForms application has a script editor tool, which allows custom scripting of the instrument in JavaScript. WaveForms is designed to be run on a laptop or desktop computer and is Windows, Mac, and Linux compatible.

For even more customization potential, the WaveForms Software Development Kit (SDK) can be used to create custom applications and scripts in Python, C and additional languages. The ADP2230 is also compatible with LabVIEW and the Digilent Toolbox for compatibility with MathWorks' MATLAB Data Acquistion Toolbox.
Also included with ADP2230 is a free 30-day trial of EveryMeasure, our new data storage and visualization platform, plus a one-year subscription to Multisim Live Premium, the online circuit simulator that lets users create, learn, and share circuits and electronics online.

The following instruments are available in WaveForms for the ADP2230:

Oscilloscope
Power Supplies
Data Logger
Pattern Generator
Spectrum Analyzer
Impedance Analyzer
Curve Tracer

Waveform Generator
Voltmeter
Logic Analyzer
Static I/O
Network Analyzer
Protocol Analyzer

Target Applications

Signal Analysis
Spectrum Analysis
Network Analyzer

Features

Analog Inputs

Two BNC input channels with 14-bit resolution with up to 25 V input range
50+ MHz bandwidth, up to 125 MS/s per channel
On-device buffering of 64 MS per channel by default, up to 128 MS per channel

Analog Outputs

One BNC output channel with 14-bit resolution, 5 V output range
15 MHz bandwidth, up to 125 MS/s per channel

Digital Power Supply

Two programmable power supplies (0.5 V to 5 V, -0.5 V to -5 V)
Up to 1 A or 3 W per channel
Integrated hardware readback of system temperature, voltage rail outputs, and sourced current

Digital Inputs and Outputs

16 dynamically configurable 3.3 V CMOS digital channels
Up to 125 MS/s per channel
On-device buffering up to 128 MS per channel

Scope of Delivery

1 xADP2230
1 xUSB C to C cable
1 x5 V 4 A switching power supply (includes US and EU plug adapters)
BNC Oscilloscope x1/x10 Probes (Pair)
6-pin Header & Gender Changer (5-pack)
2x16 flywire
Flywire label sheet

Digilent products are warranted to be free from manufacturing defects for 30 days from the date of purchase. No other express or implied warranties are provided.

References

Manufacturer: DigilentInc.
Manufacturer's article name: Analog Discovery Pro ADP2230: Mixed Signal USB Oscilloscope, Waveform Generator, Logic Analyzer, and Variable Power Supply
Manufacturer's article number: 410-417
